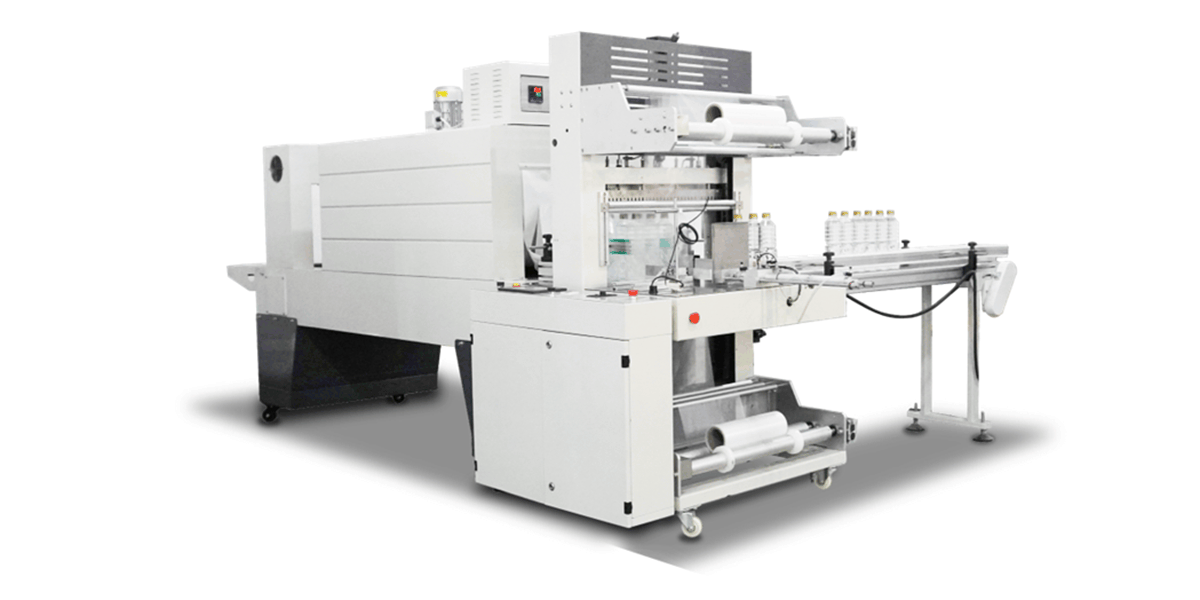

MODEL
|
RX-88P
|
|
Sealing Type
|
Sleeve Sealer
|
|
Sealing Height
|
260MM
|
|
Packing Width
|
400MM
|
|
Packing Size
|
Width + Height < 520MM
|
|
Max Film Roll Size
|
530mm (Width) X 280mm (Outer Diameter)
|
|
Power Consumption
|
1.8 KW
|
|
Sealing Machine Dimensions
|
2100 X 970 X 1600 MM
|
|
Packing Capacity
|
Max. 20 Packs per Minute (Depends on Product Size)
|
|
Installed Power
|
380V/50-60HZ/3Phase
|
|
Film Thickness
|
30-100 Micron (Minimum-Maximum)
|
|
Film Type
|
PE Film
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Sealing Knife
|
Carbon Steel / Stainless Steel
|
|
MODEL
|
RT-6040
|
|
Oven Size
|
1500MM (L), Entrance 600(W) X 400(H) MM
|
|
Tunnel Machine Dimensions
|
2200 X 750 X 1470 MM
|
|
Rated Power Consumption
|
Max. 16 KW
|
|
Power Supply
|
380V/50-60HZ/3Phase
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel / Stainless Steel
|
|
Weight(Net/ Gross)
|
830KGS/ 900KGS (For Reference Only, Including Sealer and Tunnel)
|
