Applicability
This machine is suitable for single or group products packaging of hardware, food, pharmaceuticals, books, CDs, glass products, paper towels, cards, photo frames, picture frames, aluminum profiles, wood products, pesticide bottles and other products.
|

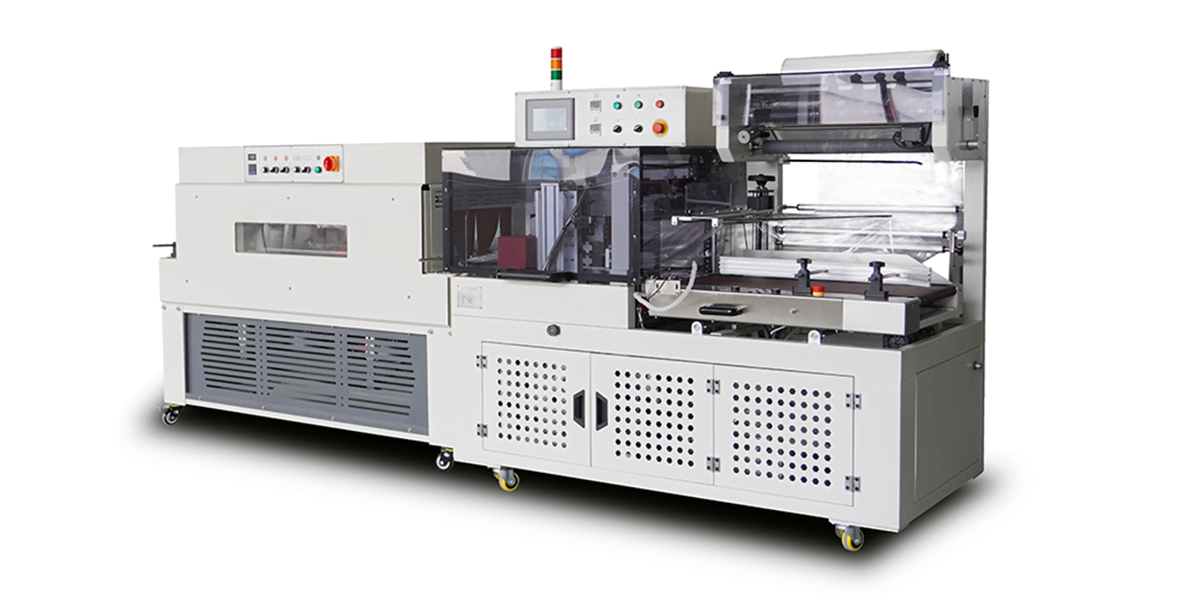

MODEL
|
RG-4020
|
|
Sealing Type
|
Full Cover Side Sealing Machine 邊封全封閉式
|
|
Installed Power
|
220V/380V; 50-60HZ; 1Phase/3Phase
|
|
Packing Capacity
|
15-35 packs per minute (depends on product size)
|
|
Sealing Height
|
200MM
|
|
Packing Width
|
350MM
|
|
Product Size
|
Width+Height≤400mm; Length: Infinite. 長度不限
|
|
Film Type
|
Center Folded POF Film POF對折膜
|
|
Max Film Roll Size
|
530MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
1.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
1800 X 950 X 1580 MM
|
|
Sealing Machine Weight
|
480KGS
|
|
MODEL
|
RT-4525
|
|
Installed Power
|
220V/380V; 50-60HZ; 1Phase/3Phase
|
|
Oven Size
|
1500MM (L), Entrance 450(W) X 250(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Rated Power Consumption
|
7 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1800 X 700 X 1300 MM
|
|
Tunnel Weight
|
318KGS
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
